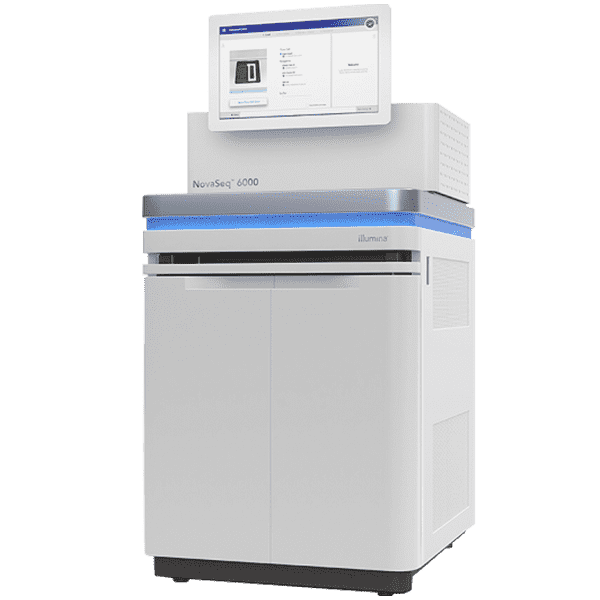

NovaSeq 6000

In 2017, Illumina announced new sequencers, NovaSeq 6000, that could potentially reduces the cost of human genome sequencing to $100 in the future. NovaSeq is assembled with a new set of flowcells: S1, S2, S3, and S4. Both the systems can work with either one or two flow cells. In addition, NovaSeq 6000 can do 2×50 bp, 2×100 bp, and 2×150 bp read length using flow cells S1 and S2, pretty similar to the existing Illumina machines.

NovaSeq 6000系统通过突破性的创新开启了测序的新时代,为用户提供了比以往更快、更经济地完成项目的吞吐量、速度和灵活性,这些系统是从头开始构建的,为任何类型的测序提供了可扩展性和灵活性,无论是大规模测序还是靶向测序。

The NovaSeq Series lets you take your research further with a wide range of projects sizes for diverse applications—all on a single system. This platform redefines high throughput sequencing with unrivaled throughput, ease of use, low per sample costs, and unmatched flexibility. Whether you are interested in higher output applications for larger-scale projects or lower output applications for smaller-scale projects, the NovaSeq Series will empower you with new possibilities. Watch whole-genome and whole-exome sequencing demonstrations and learn how the NovaSeq Series can meet your lab’s evolving needs

亮点:

  • 可扩展的吞吐量。NovaSeq 6000系统在广泛的应用中提供高通量测序。以最低的每个样本成本,以前所未有的吞吐量满足您的研究需求
  • 高度灵活。将数据输出与项目需求相匹配。通过从4种不同的流动池类型中进行选择,可以配置输出以匹配您的应用程序和项目。一个或两个独立操作的流动池可以很容易地装载到位,以满足您不断变化的需求。
  • A board range of application. High-quality, high-coverage sequencing offers a comprehensive view of the genome to detect variants accurately, characterize isoforms, and more. The NovaSeq 6000 System allows you to adapt the run to meet your study’s specific needs. Whether exploring the genome, epigenome, or transcriptome, the possibilities for your research are endless.

HiSeq X系统性能参数

流动池类型 岸上宪兵 S1 第2页 第四心音
每个流动池的车道 2. 2. 2. 2.
每个流动池的输出
2×50 bp 65-80Gb 134-167 Gb 333-417 Gb 不适用
2×100 bp 不适用 266-333 Gb 667-833 Gb 1600-2000 Gb
2×150 bp 200-250 Gb 400-500 Gb 1000-1250Gb 2400-3000 Gb
单读 0.65-0.8 B 1.3-1.6 B 3.3-4.1 B 8-10b
配对末端读取 1.3-1.6 B 2.6-3.2 B 6.6-8.2 B 16-20b
质量分数
2×50 bp ≥ 85%
2×100 bp ≥ 80%
2×150 bp ≥ 75%
运行时间
2×50 bp 约13小时 约13小时 ~16小时 不适用
2×100 bp 不适用 约19小时 约25小时 约36小时
2×150 bp 约25小时 约25小时 约36小时 ~44小时
仅供研究使用。不用于诊断程序。
